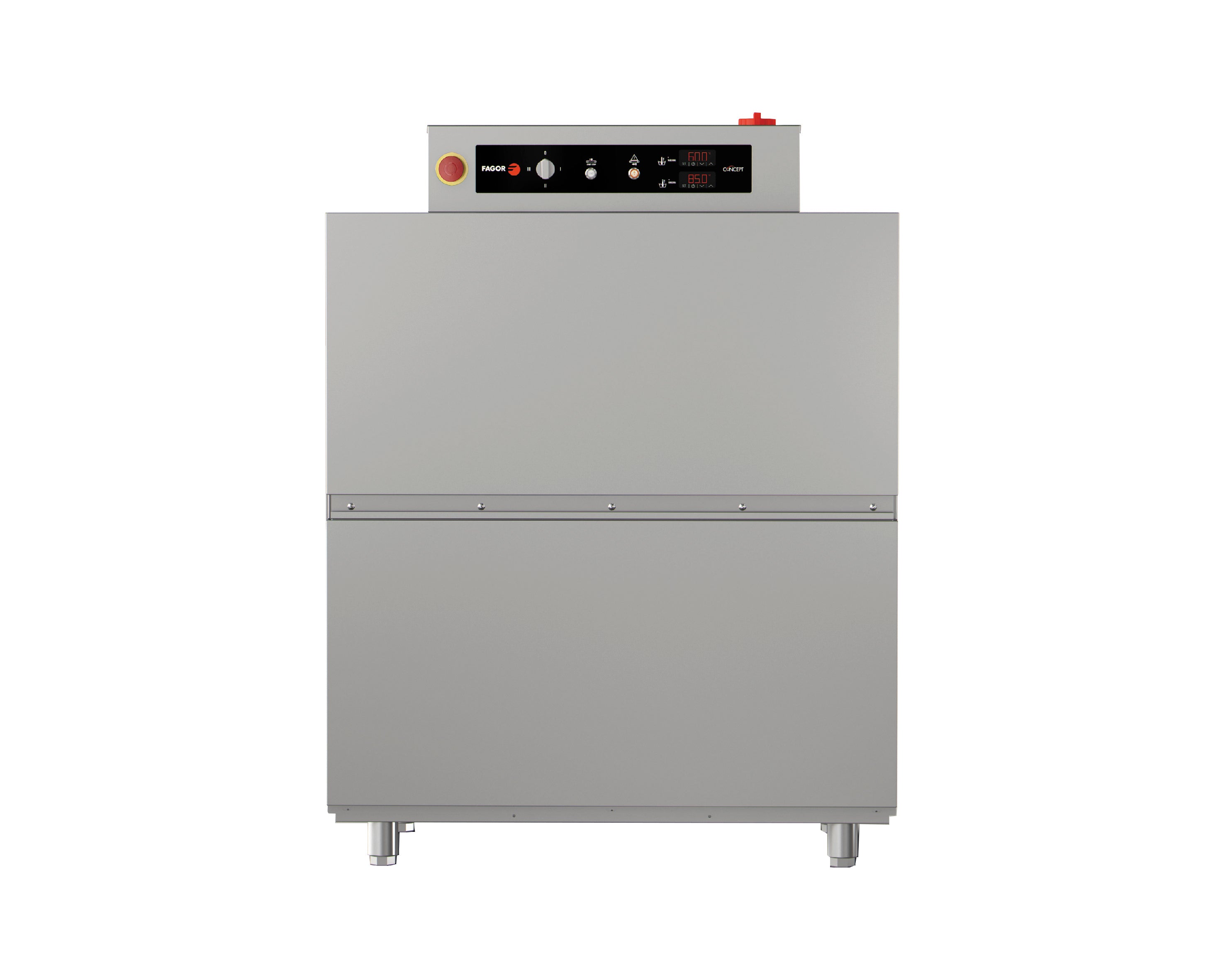

Electric Conveyor Dishwasher Left Entrance - Fagor CCO-120ICW

Sale price$20,450.99INC GST
You save
$6,818.01 (25%) OFF
Regular price RRP $27,269.00
Price Match
Fagor SKU: CCO-120ICW Sold out
  • Delivery Options to:

Request Callback
Add to Quote

Contact us to help find an alternative.

custom Visa - No Fees
custom Mastercard - No Fees
custom Shop Pay - No Fees
custom

About Payment Icon

zip From $40/month,
0% interest for 3 months
bank $204.51 (1%)
Discount applied at checkout
shopify-checkout

About Payment Icon

Sometimes, in order to really learn to do something well, you have to pay attention to the best. And the best, in this case, is our new Concept range of flight-type dishwashers. The result of a complete process re-engineering, the machines that make up this range feature the newest technological innovations and are perfect example of sturdiness, reliability and flexibility. In addition, they have a great output capacity and off-the-charts energy performance data both in terms of water and electricity consumption. And if that wasn't enough, this new range offers the best price-quality relationship on the market. That really is a professional wash. That’s how you get things done.

The perfect result: perfect drying

The air inside is drawn off and sent to turbines which, through heating elements, increase their
temperature up to 50/60 ºC.To achieve perfect drying, even in complicated cases, we offer the possibility of adding consecutive drying modules.

Don’t waste energy

The energy recovery system draws off steam generated in the tunnel. This heat generated
through steam is recovered since it is redirected towards the energy recovery system. Thanks to the heat exchanger, the heat generated through steam can be used to increase the temperature of the water that is then sent to the boiler.

We adapt to your rhythm

The adaptive rinse system results in low and homogeneous consumption. The quantity of water used in the rinse adapts to each speed: the lower the speed, the lower the quantity of water needed, since the time the dishes are in contact with the water is increased.

Your comfort is our goal

The steam extraction system 0-STEAM prevents steam from escaping the machine, guaranteeing an ideal climate in the work environment. During the entire activity, the washing tunnel recovers heat generated as steam saving unnecessary expenses.

Ready, set, go!

The photocell located at the machine entrance detects dishes and starts up the machine. At the machine exit, there is also a detector to stop the belt from continuing when it reaches the end.

Because we believe in a sustainable world

In accordance with the energy saving philosophy of Fagor Professional, we offer a solution which is unique among European manufacturers: gas dishwashers. In the case of rack type dishwashers, by using a gas generator in the ECO models and, in the case of flight type dishwashers, with gas models with an integrated generator.

  • All the main parts are manufactured in AISI-304 anti-corrosion stainless steel: tanks, washing and rinsing arms, rinsing jets, doors, basket conveyance system, boiler and metal tubes.
  • Upwards-opening double panel door.
  • Tank tray filters made of AISI-304 stainless steel, easy to access and remove for cleaning and access to the tank.
  • Safety filter for pump suction.
  • Rinsing boiler with heat insulation.
  • Easy access for installation. Electrovalve located on one side (no need to remove panels to connect the machine).
  • Electrical panel designed for easy connection of dosers for liquid and solid detergents, rinse aid, limit switches, supplementary emergency stop button.
  • Washing arms easily removable as a set, for cleaning, with a plug on each branch providing access for cleaning inside.
  • Rinse jets easily dismountable and removable.
  • System of electronic regulation of speeds by means of frequency shifter.

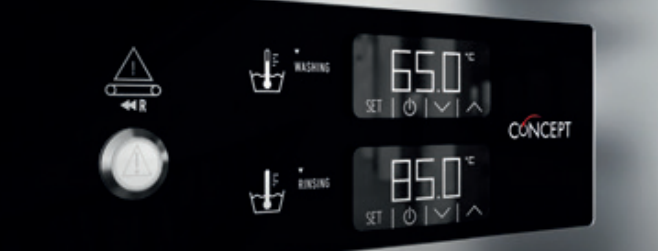

  • Configurable electronic temperature control:
    - Wash (50 - 65 °C)
    - Rinse (70 - 85 °C)
  • Guarantor of rinse at 85 °C.
  • Pressure regulator for flow control.
  • Emergency stop button incorporated.
  • Extra anti-entrapment protection system at the entrance, mounted on the AS-260 splash guard supplement (optional).
  • Open door blocking system.
  • IPX4 protection system.
  • System for detection of blockage of conveyor carriage and automatic reverse function.

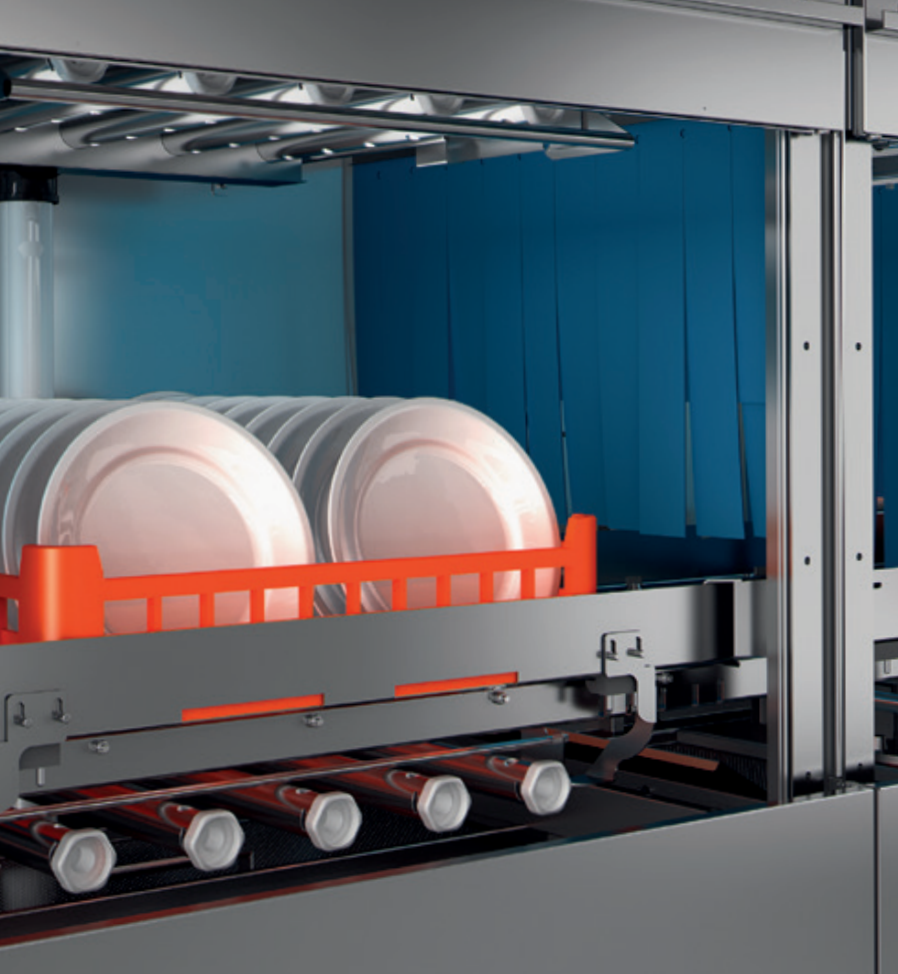

  • High-power washing system with 4 upper and 4 lower washing branches.
  • 3 washing programs: deep, medium and high capacity.
  • Double effect rinse.
  • Energy-saving system: reduces consumption by halting operation of the pumps, and by passing the heating of the rinse to stand-by mode (70 °C).
  • Auto-timer which deactivates the conveyor motor after a pre-set period of inactivity (10 minutes).
  • Energy saving system in the wash: the wash does not start up until it
    detects the passage of the basket.
  • Rinse saving system. The rinse stops when the basket has left, saving water and energy.
  • Model prepared for entrance of baskets from the left side.
  • Model prepared for a cold water connection inlet (Inlet temperature < 50ºC)
  • Equipment included:
    2 base baskets, CT-10
    2 baskets for plates CP-16/18, 1 basket for
    glasses CV-16/105, 1 basket for cutlery CT-10 R
    Limit switch included.

One year parts and labour warranty

Power: 50Hz; 400V - 3N; 26.55kW;

See our full range of Fagor Products

See Similar products from Conveyor Dishwashers Category

Sometimes, in order to really learn to do something well, you have to pay attention to the best. And the best, in this case, is our new Concept range of flight-type dishwashers. The result of a complete process re-engineering, the machines that make up this range feature the newest technological innovations and are perfect example of sturdiness, reliability and flexibility. In addition, they have a great output capacity and off-the-charts energy performance data both in terms of water and electricity consumption. And if that wasn't enough, this new range offers the best price-quality relationship on the market. That really is a professional wash. That’s how you get things done.

The perfect result: perfect drying

The air inside is drawn off and sent to turbines which, through heating elements, increase their
temperature up to 50/60 ºC.To achieve perfect drying, even in complicated cases, we offer the possibility of adding consecutive drying modules.

Don’t waste energy

The energy recovery system draws off steam generated in the tunnel. This heat generated
through steam is recovered since it is redirected towards the energy recovery system. Thanks to the heat exchanger, the heat generated through steam can be used to increase the temperature of the water that is then sent to the boiler.

We adapt to your rhythm

The adaptive rinse system results in low and homogeneous consumption. The quantity of water used in the rinse adapts to each speed: the lower the speed, the lower the quantity of water needed, since the time the dishes are in contact with the water is increased.

Your comfort is our goal

The steam extraction system 0-STEAM prevents steam from escaping the machine, guaranteeing an ideal climate in the work environment. During the entire activity, the washing tunnel recovers heat generated as steam saving unnecessary expenses.

Ready, set, go!

The photocell located at the machine entrance detects dishes and starts up the machine. At the machine exit, there is also a detector to stop the belt from continuing when it reaches the end.

Because we believe in a sustainable world

In accordance with the energy saving philosophy of Fagor Professional, we offer a solution which is unique among European manufacturers: gas dishwashers. In the case of rack type dishwashers, by using a gas generator in the ECO models and, in the case of flight type dishwashers, with gas models with an integrated generator.

  • All the main parts are manufactured in AISI-304 anti-corrosion stainless steel: tanks, washing and rinsing arms, rinsing jets, doors, basket conveyance system, boiler and metal tubes.
  • Upwards-opening double panel door.
  • Tank tray filters made of AISI-304 stainless steel, easy to access and remove for cleaning and access to the tank.
  • Safety filter for pump suction.
  • Rinsing boiler with heat insulation.
  • Easy access for installation. Electrovalve located on one side (no need to remove panels to connect the machine).
  • Electrical panel designed for easy connection of dosers for liquid and solid detergents, rinse aid, limit switches, supplementary emergency stop button.
  • Washing arms easily removable as a set, for cleaning, with a plug on each branch providing access for cleaning inside.
  • Rinse jets easily dismountable and removable.
  • System of electronic regulation of speeds by means of frequency shifter.
  • Configurable electronic temperature control:
    - Wash (50 - 65 °C)
    - Rinse (70 - 85 °C)
  • Guarantor of rinse at 85 °C.
  • Pressure regulator for flow control.
  • Emergency stop button incorporated.
  • Extra anti-entrapment protection system at the entrance, mounted on the AS-260 splash guard supplement (optional).
  • Open door blocking system.
  • IPX4 protection system.
  • System for detection of blockage of conveyor carriage and automatic reverse function.
  • High-power washing system with 4 upper and 4 lower washing branches.
  • 3 washing programs: deep, medium and high capacity.
  • Double effect rinse.
  • Energy-saving system: reduces consumption by halting operation of the pumps, and by passing the heating of the rinse to stand-by mode (70 °C).
  • Auto-timer which deactivates the conveyor motor after a pre-set period of inactivity (10 minutes).
  • Energy saving system in the wash: the wash does not start up until it
    detects the passage of the basket.
  • Rinse saving system. The rinse stops when the basket has left, saving water and energy.
  • Model prepared for entrance of baskets from the left side.
  • Model prepared for a cold water connection inlet (Inlet temperature < 50ºC)
  • Equipment included:
    2 base baskets, CT-10
    2 baskets for plates CP-16/18, 1 basket for
    glasses CV-16/105, 1 basket for cutlery CT-10 R
    Limit switch included.

One year parts and labour warranty

Power: 50Hz; 400V - 3N; 26.55kW;

See our full range of Fagor Products

See Similar products from Conveyor Dishwashers Category

SKUCCO-120ICW
External Material Stainless Steel
Fuel Electric Three Phase
Power 50Hz; 400V 3N; 26.55kW;
Product Dimensions 1180(W) x 790(D) x 1560(H)mm
Warranty 2 Years Parts and Labour
